Product Description
The Best Relation of Quality and Price in the Global Market..!
Divided 2 in 1 parts: a hot part for pasteurizing
and a cold part for batch freezing,
they can work at same time or separately.
Hardness-control-system (HCS)
integrated with experienced technology available
for any operator to make the same high-quality gelato.
Fully automatic operation with very
friendly and flexible interface.
Patent dasher with high performance,
easy to clean and replace.
Vertical heating tub with fluent
transfer tube,easy for operating,
cleaning and maintenance.
Unique designed evaporator
with gas finely dispersed to “Multipoint” around cylinder.
Two speeds, low for Italian gelato and high for high overrun ice cream.
Designed with safety devices to protect the operator and
the machine from dangers.
Practical built-in water hose allowing easier and faster cleaning.
Maximum extraction resulting in minimal flavors overlap.
Automatic audible alarm signals when a process is done.
International acceptable R404a refrigerate gas.

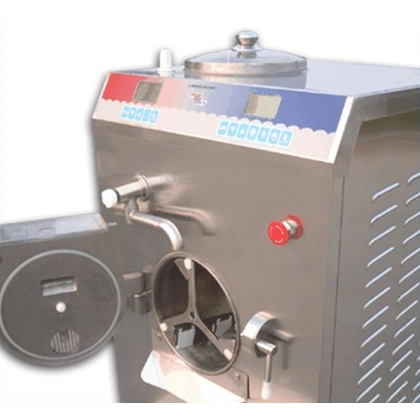

This machine is divided into two parts,
the hot part works for pasteurizing
and the cold part for batch freezing.
They can work at same time which
makes the machine have the
characteristic of operating quickly,
simply and saving space.
It is adopted the most advanced freezing cylinder
design of the world and promoted dasher.
Meanwhile it is assembled the technical grade
frequency converter which can save the energy,
start and stop very quietly and help to extend the working life
of the compressor and churning motor.
It is allocated with the French Tecumesh
compressor cooling system and
American Sporlan expansion valve, etc.
The warranty period of the
imported compressor
and the parts is 3 years
and the warranty period of the
whole machine is 1 year.
Features Include:
1. The whole machine is controlled by the
computer intelligent system
with large LCD screen. The machine operating
status is shown in the graphics
whose interface can reflect the communication between
the operator and the machine.
The preference was protected by the password which can
prevent the operation by mistake.
2. Quantized and selective automatic control system.
3. Output is adopted the low noise and undisturbed technology.
4. The Vertical and fluent transfer tube heating kettle,
easy for operating, cleaning and maintenance.
5. The high efficient evaporator construction and the multipoint linear
heat-conducting control can batch freeze very fast.
6. Three phrases stainless steel dasher with module
design scrape the materials thoroughly.
And it can be discharged conveniently
and cleaned easily.
7. High impact extrusion technology avoids
the mix of different flavors.
8. There are many security modules and
self trouble diagnosis system inside.
9. Humanistic slant control faceplate.
10.Closed cleaning water source help to work
efficiently and sanitarily.
11.Adpoting the UFI approved environmental-friendly
refrigerant R404A
Most of the main spare parts for our machines are imported
from the world famous companies.
Easy to operate! Easy to clean! Easy to maintain!
Technical Features
Item Model:
ARTISAN TABLE COMPO AW1224
Main Power: 220/380V-50/60Hz
Rated Power: 6.65 Kw
Gas Type: R404A
Hourly output: 12-24 L
Mixing Cylinder Capacity: 6 Liter
Heating Cylinder Capacity: 4 Liter
Water or Air Cooling
Net Weight: 185Kg
Time to finisch one batch 6-15 Min.
Dimension: 450 x 690 x 900
Stainless Steel Stantard:
AISI Type 304
Our batch freezer equipment testing for many years in several European countries
in Italian,German Ice Cream Shops, with the best recommendations. .
Terms and conditions
Delivery time : 2-5 weeks upon receipt of payment,
depends on the quantity and the additional function.
A standard spare part is posted within 24 hours
of ordering and reaches
its destination in 2–3 days.
