Product Description
The Best Relation of Quality and Price in the Global Market..!
Hardness-control-system (HCS) integrated
with experienced technology
available for any operator to make
the same high-quality gelato.
Fully automatic operation with very friendly
and flexible interface.
Patent dasher with high performance,
easy to clean and replace.
Unique designed evaporator with gas finely dispersed
to “Multipoint” around cylinder.
Two speeds, low for Italian gelato and high
for high overrun ice cream.
Designed with safety devices to protect
the operator and the machine from dangers.
This machine is adopted the advanced freezing
cylinder design and the promoted beater
and it is assembled with the technical grade frequency
converter which can save the energy,
start and stop very quietly and help to extend the
working life of the compressor and churning motor.
It is allocated with the French Tecumesh compressor
cooling system and American Sporlan expansion valve, etc.
The warranty period of the imported compressor and the parts
is 3 years and the warranty period of the whole machine is 1 year.
Features:
1. The whole machine is controlled by the computer
intelligent system with large LCD screen.
The machine operating status is shown in
the graphics whose interface can reflect
the communication between the
operator and the machine.
The preference was protected by the password
which can prevent the operation by mistake.
2. Quantized and selective automatic control system.
3. Output is adopted the low noise and undisturbed technology.
4. The high efficient evaporator
construction and the multipoint
linear heat-conducting control
can batch freeze very fast.
5. Three phrases stainless steel dasher with
module design scrape the materials thoroughly.
And it can be discharged conveniently and cleaned easily.
6. High impact extrusion technology avoids
the mix of different flavors.
7. There are many security modules and
self trouble diagnosis system inside.
8. Humanistic slant control faceplate.
9. Closed cleaning water source help
to work efficiently and sanitarily.
10.Adpoting the UFI approved environmental-friendly
refrigerant R404
Most of the main spare parts for our machines are imported
from the world famous companies.
Easy to operate! Easy to clean! Easy to maintain!
Technical Features

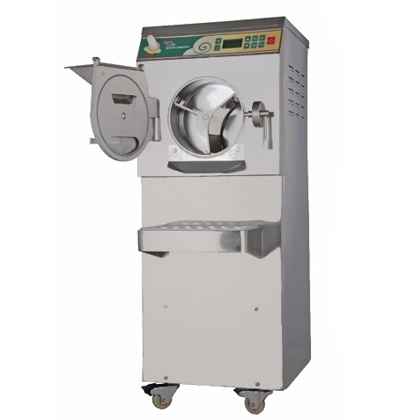

Item Model: ARTISAN AW60120
Main Power: 380V-50/60Hz 3Ph
Rated Power: 10.1 Kw
Gas Type: R404A
Hourly output: 72-140 L
Mixing Cylinder Capacity: 34 Liter
Water or Air Cooling
Net Weight: 310Kg
Time to finisch one batch 6-15 Min.
Dimension: 600 x 800 x 1450
Stainless Steel Stantard:
AISI Type 304
Our batch freezer equipment testing for many years in
several European countries in Italian,German Ice Cream Shops,
with the best recommendations. .
Terms and conditions
Delivery time : 2-5 weeks upon receipt of payment,
depends on the quantity and the additional function.
A standard spare part is posted within 24 hours of ordering and reaches
its destination in 2–3 days.
